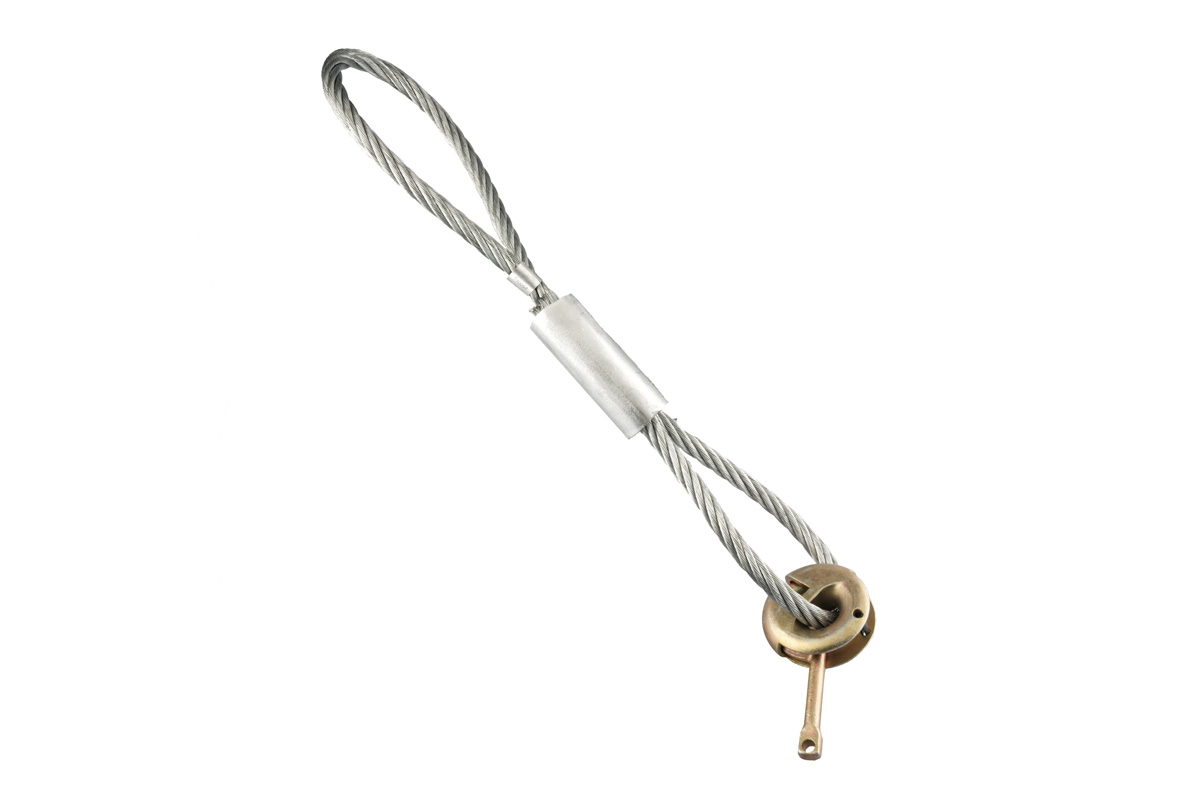

Wire rope lifting ring clutch - HAL1

What: Wire rope lifting ring clutch - HAL1

Usage:

Specifications:

Material: The lifting hook with cable is made of high quality steel.
Working Load: The lifting hook to be used should have the same working load as the corresponding flat anchor.

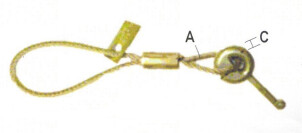

HAL1	Permissible load (ton)	Anchors	Dimensions (mm) L Cable	A	C
HAL1-01,25	0.7-1,25	07-1,25	350	8	20
HAL1-025	2,5	1,4-2.5	590	13	26
HAL1-050	5	3-5	640	18	36
HAL1-100	10	5,3-10	890	22	51

Enlarge image

	Metalen verzinkte kabel met badge / Galvanised metal cable with badge / Câble métallique galvanisé avec badge / Cable metálico galvanizado con placa
ZP	Zink Plated
