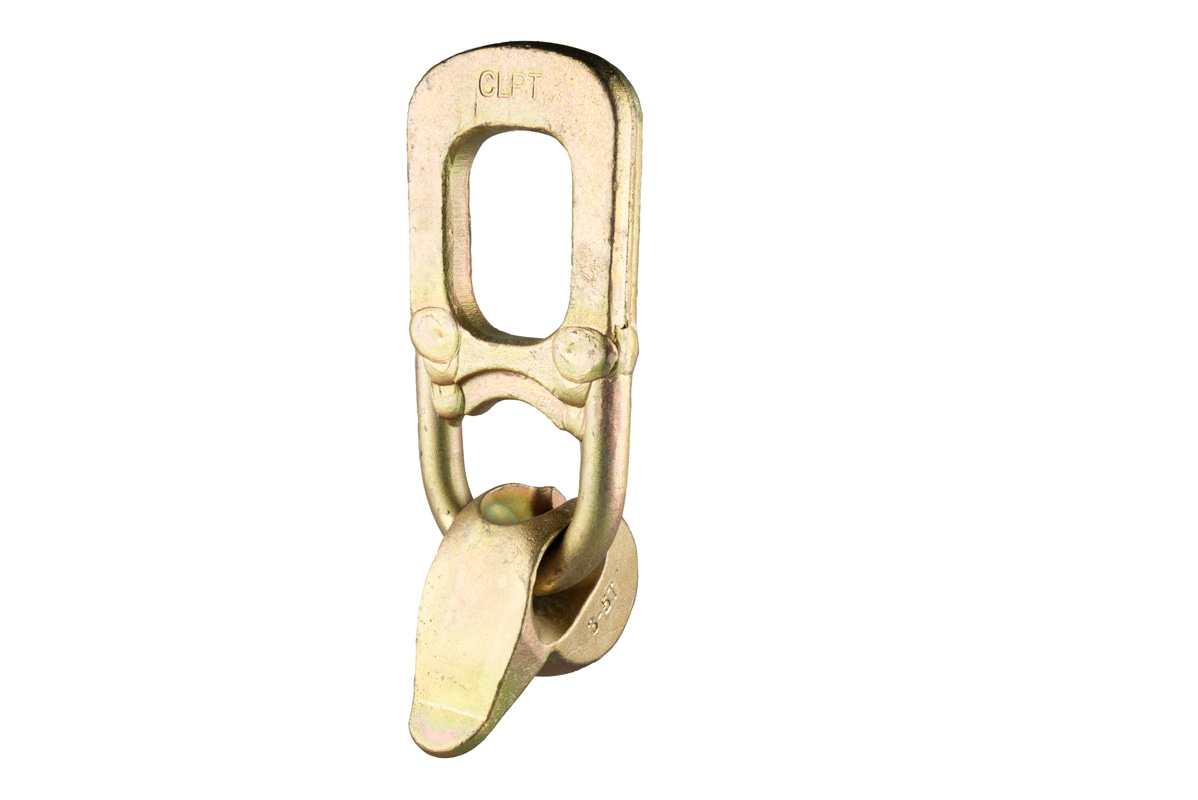

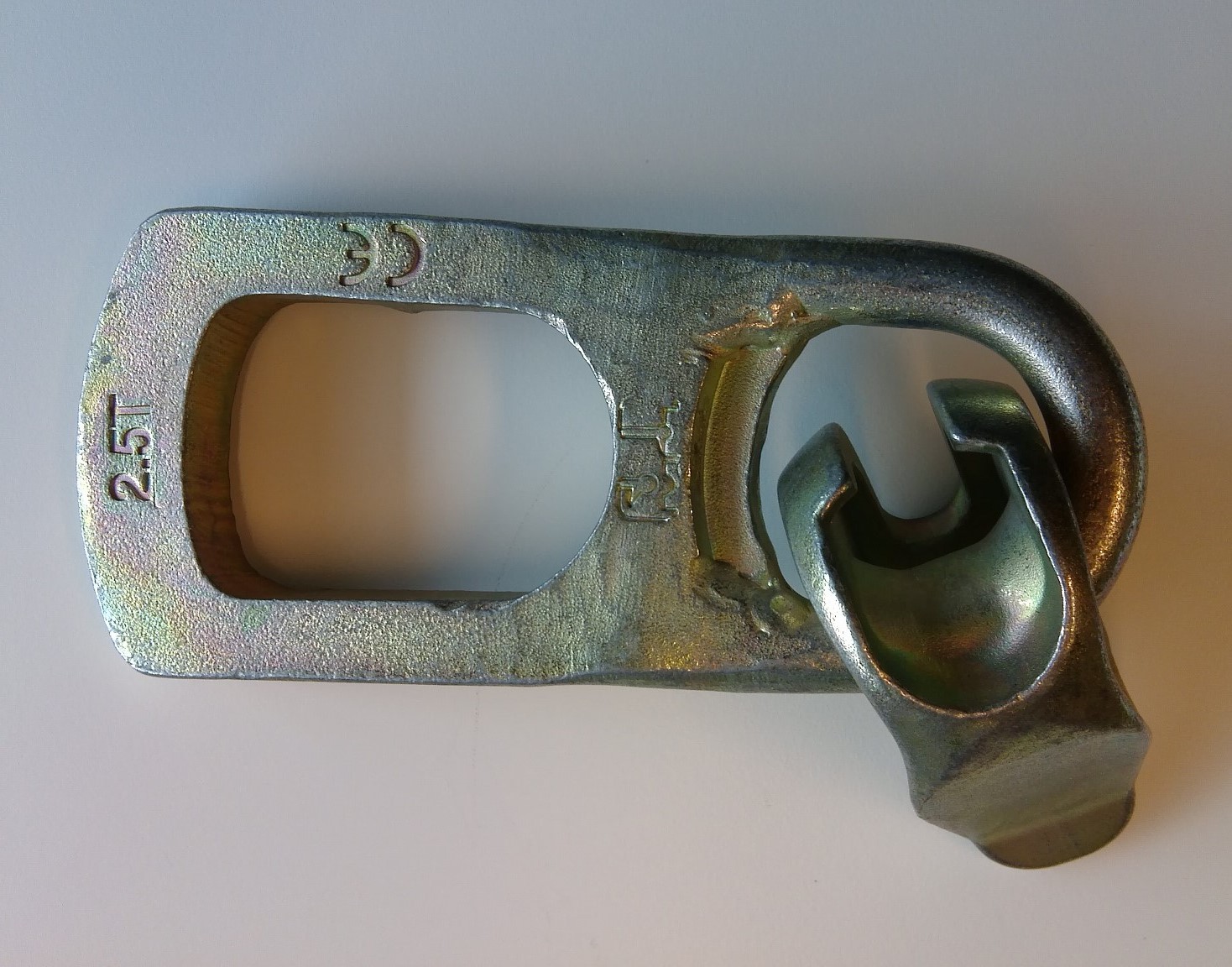

Lifting eyes ( clutch ) for Spherical Head Lifting Anchor - 6102

Lifting eyes ( clutch ) for Spherical Head Lifting Anchor - 6102

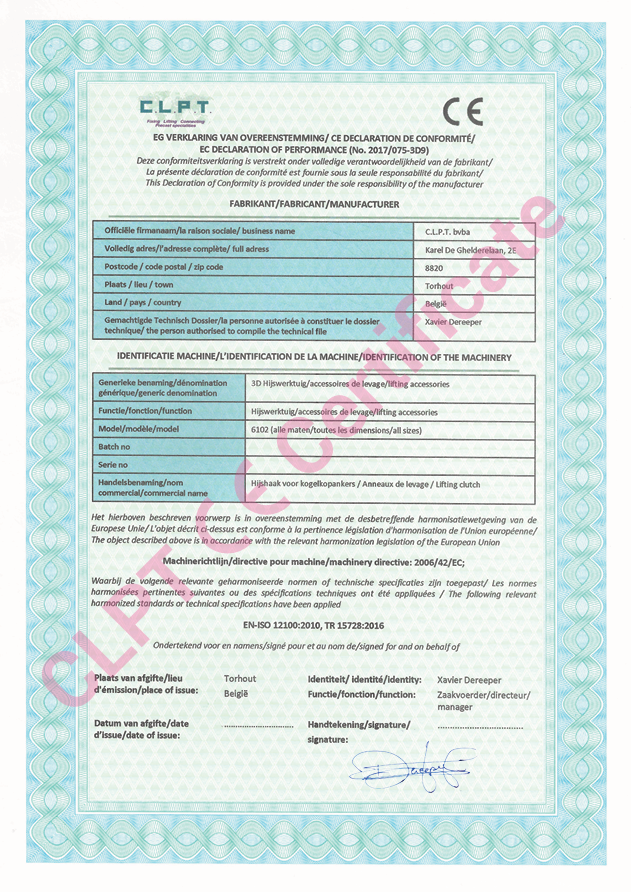

✅ CE Certificate ✅

Discover the versatility and strength of our lifting hook system for spherical head anchors! Perfect for safely and efficiently lifting heavy precast concrete elements up to 20 tons.



Applications

  • Moving walls, floors, beams, and columns.
  • Lifting and turning concrete pipes.
  • Transporting sandwich panels.



Benefits

  • Quick and easy connection and disconnection of anchors and lifting eyes.
  • Robust and reliable, even under tough conditions.
  • Cost-effective for all lifting situations thanks to a wide range of accessories.
  • Suitable for lifting all spherical head anchors and Spherical Head Magazine-PIPE anchors.



Safety

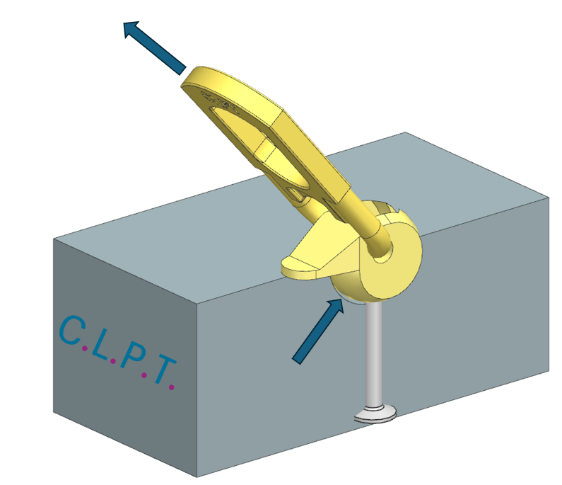

  • Easy to attach to recessed spherical head anchors.
  • Efficient at various angles.



Technical Specifications

  • Galvanized
  • Supplied with individual test certificate.



Usage Tips

  • Always check for visible defects such as deformation or corrosion.
  • Consult the manufacturer to determine the type of anchor needed for your specific lifting application.

✅ CE Certificate ✅

Technical information

6102 Permissible load (ton) Anchors Dimensions (mm) A B C F
6102-013-ZP 1,3 1.300 45 75 69 33
6102-025-ZP 2,5 2.500 55 88 83 42
6102-050-ZP 5 4.000-5.000 65 118 88 57
6102-100-ZP 10 7.500-10.000 82 155 111 74
6102-200-ZP 20 15.000-20.000 143 185 113 110
Lifting eyes ( clutch ) for Spherical Head Lifting Anchor - 6102
Enlarge image

Types and colors

ZP Zink Plated
